Heru 160 t ec-y2 re varmask. samst.

Varmaskiptir Samstæða frá Östberg
Gerð: HERU 160 T EC-y1 RE

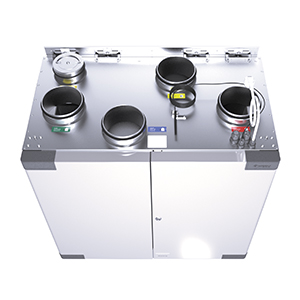

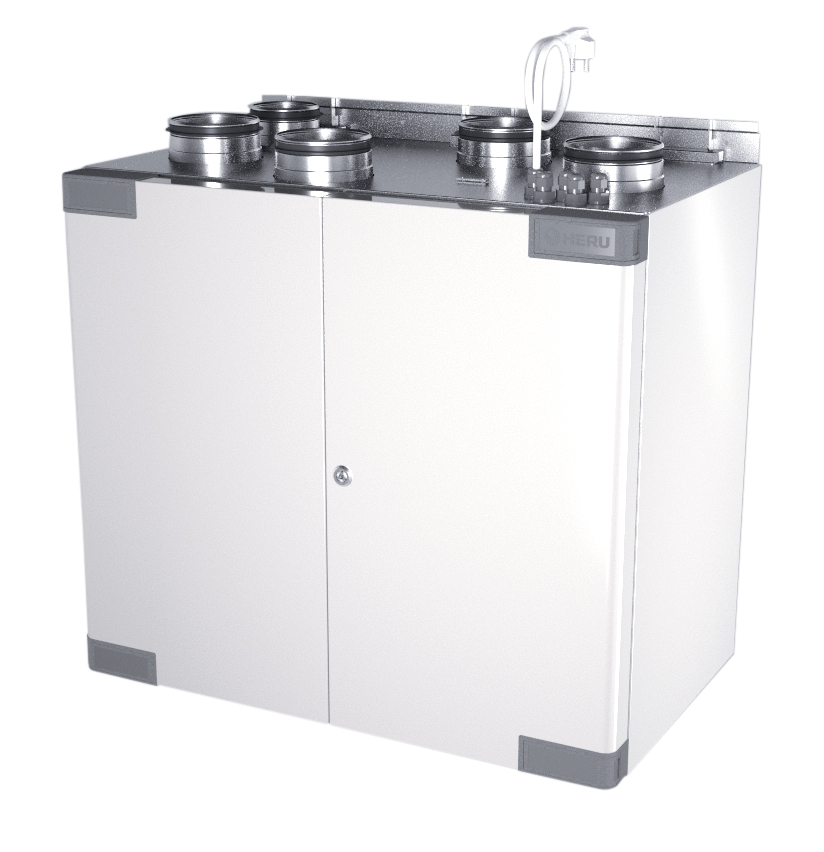

Wall-mounted model with top connection.

Designed for supply and exhaust air ventilation with energy recovery.

Suitable for installation in apartments, small houses, offices and other premises where there are stringent requirements on the indoor environment.

High temperature efficiency, low energy consumption (SFP), low sound level, high operating reliability and provides clean indoor air.

Unique design minimizes all thermal bridges.

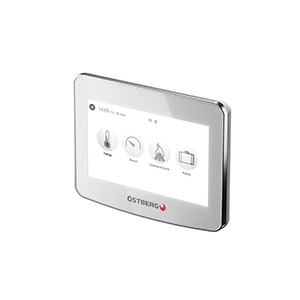

Easy to handle with a wireless IQ CONTROL with 4,3” touch display for operation and monitoring.

Integrated Modbus communication. No accessories needed.

App controlled via cloud service.

Easy installation wizard.

Scheduled operation.

Supports use of presence sensors.

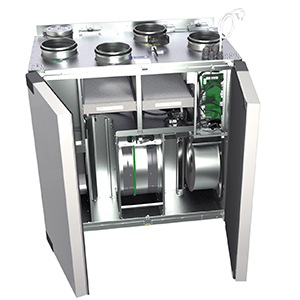

Airflow is generated by two silent radial fans with EC motors and impellers with backward curved blades.

The fans are connected using quick connectors and are very easy to remove for cleaning.

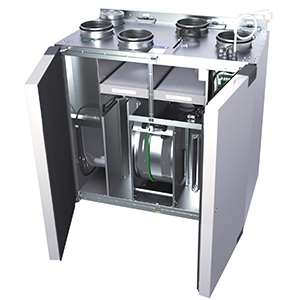

A regenerative, non hygroscopic, aluminum rotating heat exchanger located in the center of the unit. The heat exchanger can easily be removed for cleaning.

Delivered with filter ISO ePM1 50% as standard, for both exhaust and supply air. The filters are very easy to change.

Integrated controls for heating/cooling. Increases thermal comfort by heat recovery or night cooling.

Integrated electric heater.

The interior of the unit is constructed of galvanized steel sheet. The exterior is made of powder coated galvanized steel sheet and Galfan, and meets C3 requirements.

50 mm insulation in sides, top, bottom and door.

30 mm insulation in the back of the unit.

For placement in warm areas, such as laundry, storage or utility rooms.

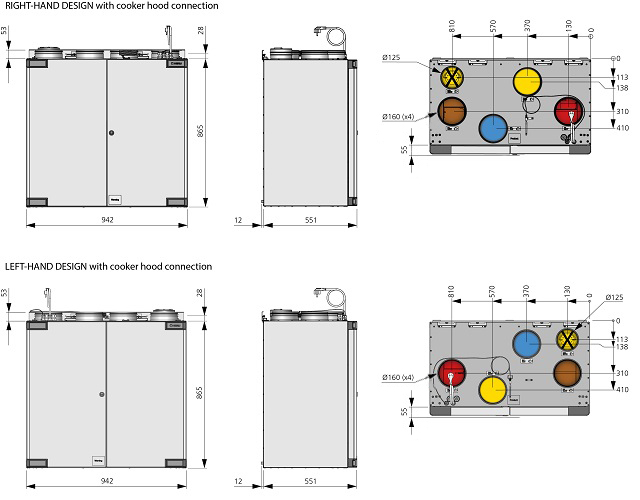

Available in either right-hand or left-hand design.

HERU 100T and HERU 160T has a connection for a cooker hood. This connection is routed past the rotor to prevent cooking odours from spreading back into the premises.

HERU 100T and HERU 160T are equipped with wall plug.


Integrated silencer on the supply air and extract air side.

NOTE! The warranty of HERU is only valid if accessories/equipment (e.g. filters) from H. Östberg AB are used.
